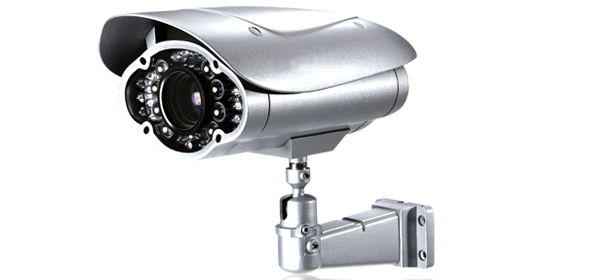

RA-7780 Fixed Lens IR Camera

Fingerprint Time Attendance ZDC1533

Technical Specification
★ Zoom camera
★ IR LED
★waterproof
★IR distance is 40~50m
Model
RA-7780H
RA-7780P
RA-7780
image sensor: 1/3″ SONY Super HAD CCD
signal system: PAL/NTSC
effective pixels: PAL:752(H)×582(V)
NTSC:768(H)×494(V)		 PAL:752(H)×582(V)
NTSC:768(H)×494(V)		 PAL:500(H)×582(V)
NTSC:510(H)×492(V)
horizontal resolution: 540TV Lines 480TV Lines 420TV Lines
lens: 3.6mm 4mm 6mm 8mm 12mm
Minimum illumination: 0Lux
Shutter speed: 1/50（1/60）——1/100,000（秒）
White Balance: Auto Tracking Balance
S/N Ratio: More than 48db(AGC OFF)
Focus : FIXED focus
Video output: 1.0Vp-p,75Ω
Power Requirment : 12V 1000ma
Power comsuption: 10w
Video Out: VIDEO OUT （BNC）
Infrared Wavelength: 40M
Infrared lamp wave length: 850nm
Weight(g): 1.5kg
