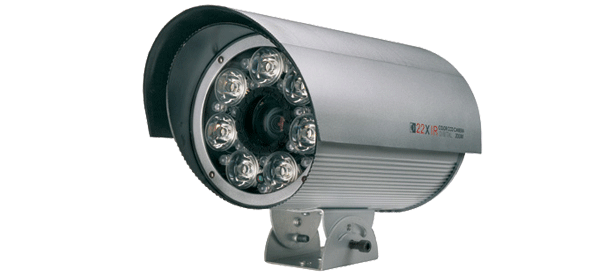

RA-7800 Fixed Lens IR Camera

Fingerprint Time Attendance ZDC1533
Led Array weatherproof camera

Technical Specification
★ Zoom camera
★ IR LED
★waterproof
★IR distance is 80-120m
Model
RA-7800H
RA-7800P
RA-7800
image sensor: 1/3″ SONY Super HAD CCD
signal system: PAL/NTSC
effective pixels: PAL:752(H)×582(V)
NTSC:768(H)×494(V)		 PAL:752(H)×582(V)
NTSC:768(H)×494(V)		 PAL:500(H)×582(V)
NTSC:510(H)×492(V)
horizontal resolution: 540TV Lines 480TV Lines 420TV Lines
lens: 22X ZOOM LENS
Minimum illumination: 0Lux
Shutter speed: 1/50（1/60）——1/100,000（秒）
White Balance: Auto Tracking Balance
S/N Ratio: More than 48db(AGC OFF)
Focus : Move Focus
Video output: 1.0Vp-p,75Ω
Power Requirment : AC 180-240V
Power comsuption: 20w
Video Out: VIDEO OUT （BNC）
Infrared Wavelength: 80~100M
Infrared lamp wave length: 850nm
Weight(g): 2.2kg
